Dredging Pump MTB4M-BDA22

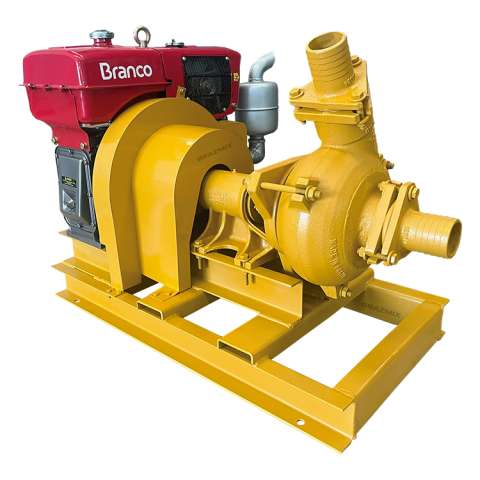

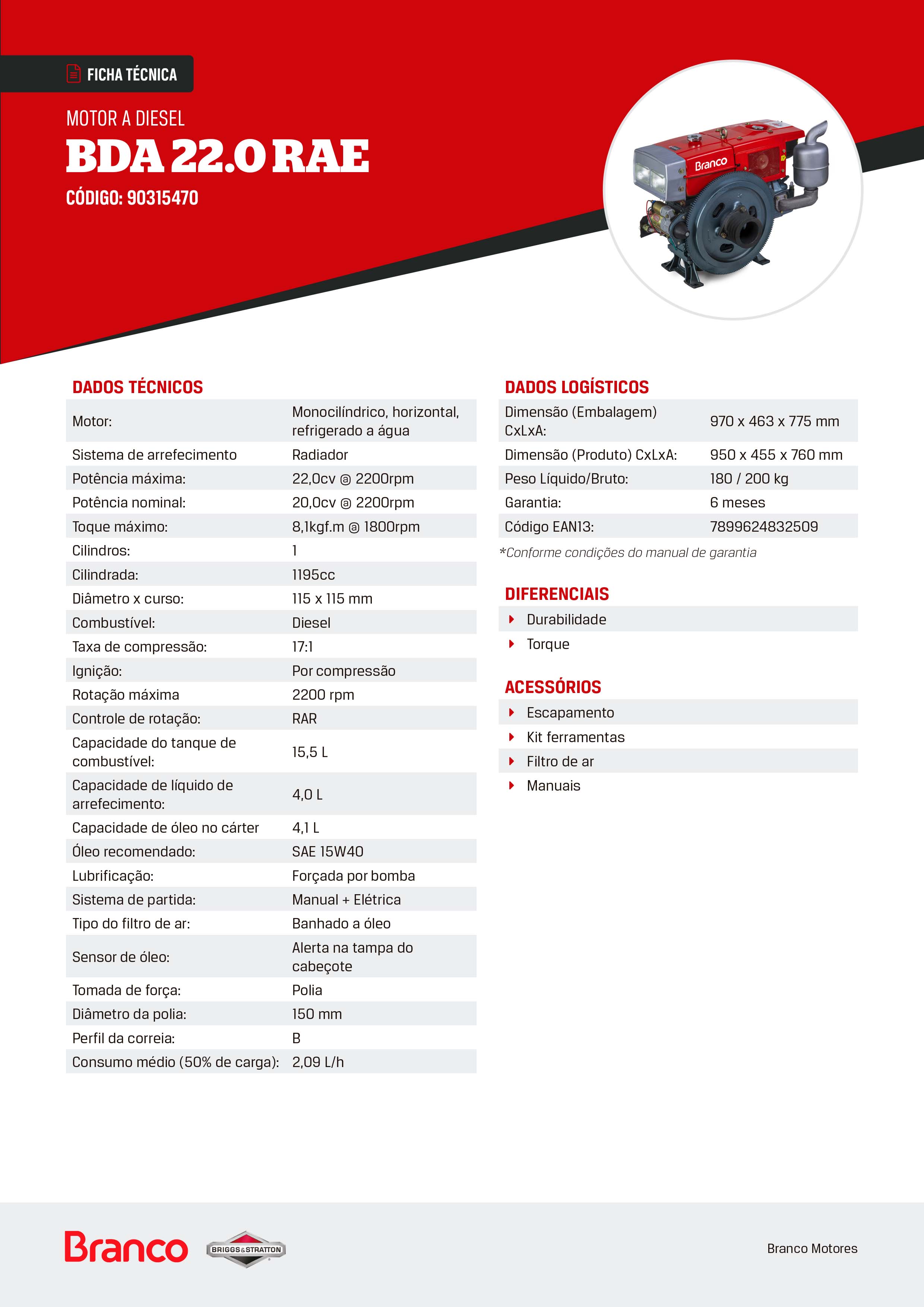

4 Inches Dredging Pump Driven by Branco Engine 20cv

Versatility for small services

BRL 19.200,00*

*The informed value is refered to the price list defined for cash for individual sales, available for pick-up at our factory (no freight included). For special deals, multiple product quotes on the same order that includes shipping, different terms for payment, or exports, you must contact the sales department to receive the supplementary information.

Download our Complete Catalog

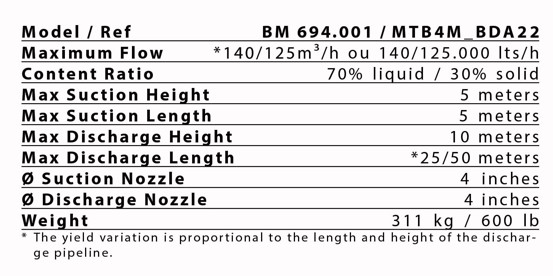

Technical description

4-inches Diesel Engine Driven Dredge Pump for suction of solid materials in conjunction with water (30% solids and 70% liquid).

Recommended for:

- Sand in rivers, lakes, and ponds

- Gravel and small stones in rivers, lakes, and ponds (maximum diameter of 3 cm)

- Mud, sludge, and well drilling residues

- Stormwater and river sewage

- Clean water (without suspended solids)

- Organic materials such as animal waste

- Flood irrigation

Not recommended for:

- Food products

- Potable water (intended for consumption)

- Organic materials with elongated fibers

- Corrosive liquids

- Concrete or similar materials

- Sprinkler irrigation or pressurized line irrigation

General Notes:

- This pump model is NOT self-priming.

- The assembly suffers abrasion wear when dredging solids, and it is impossible to say exactly how long it will last under these conditions.

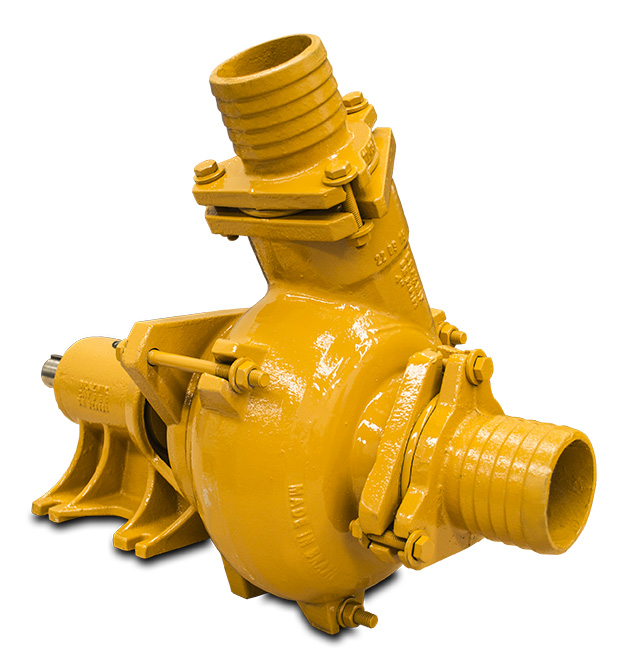

- Pump manufactured from cast iron (casing, protective discs and sealing peripherals), nodular iron (bearing) and steel (rotor, shaft, bearings and screws).

- Approximate weight of the pack = 310 kg

- This pump has a rotation direction that is not compatible with the rotation direction of most tractor power take-offs (PTOs), however, it is still possible to use the pump to couple to the tractor if adaptations are made during coupling. Consult additional information for this purpose.

- It is recommended to use a foot valve on the suction hose to facilitate the priming process.

The priming process is when, before starting the engine, the entire suction hose and pump housing are filled with water, ensuring that it is full before starting the engine. This process allows the pump to generate negative pressure and continue suction on its own.

- During the dredging process, the suction hose must not suck in air. This will cause it to stop operating until a new priming process is performed.

IF YOU DO NOT HAVE EXPERIENCE WITH THE ASSEMBLING AND OPERATION OF MECHANICAL EQUIPMENT, CONSIDER THE POSSIBILITY OF ASSISTANCE FROM QUALIFIED PERSONNEL.

This is a mechanical device that requires the installation of an engine and coupling. Ensure your safety when operating the assembled equipment.

This pump is manufactured from cast material that is fragile to impacts, so it is necessary to handle it carefully during installation.

If you have any questions about the operating capabilities of the pump in your project, please contact our technical team through the available means.
