Products/Accessories/Suction Hoses

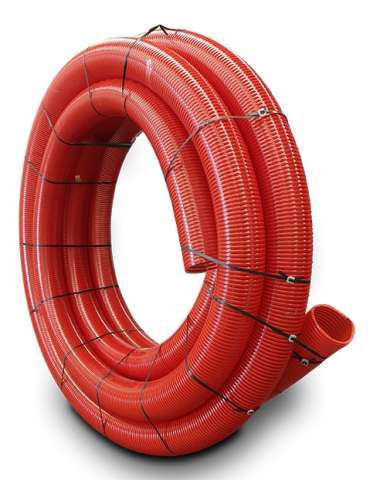

Suction Hoses

For dredgers with light and heavy suction

High Abrasion Resistance

Suction hoses for dredging liquids and solids in high concentration.

CÓD.

Vacuum
POL. HG

MODEL PREssure internal
diameter
thickness
(MM)
ROLl (METROS) breaking pressure work temperature(ºC)
104 29 NAM 100 Lbs/Pol 2 5,2 25/50 300 Lbs/Pol 5ºC A 55ºC
106 29 NAM 90 Lbs/Pol 2.1/2 5,8 25/50 270 Lbs/Pol 5ºC A 55ºC
108 29 NAM 80 Lbs/Pol 3 5,9 25/50 240 Lbs/Pol 5ºC A 55ºC
110 29 NAM 75 Lbs/Pol 4 6,9 25/50 225 Lbs/Pol 5ºC A 55ºC
112 29 NAM 70 Lbs/Pol 5 6,9 15/30 210 Lbs/Pol 5ºC A 55ºC
114 29 NAM 65 Lbs/Pol 6 8,2 15/30 195 Lbs/Pol 5ºC A 55ºC
813 29 NAM 47 lbs/Pol 8 10,1 6/15/20/30 142 lbs/Pol 5ºC A 55ºC
765 29 COM 80 lbs/Pol 2 4,0 25/50 240 lbs/Pol 5ºC A 55ºC
766 29 COM 75 lbs/Pol 2.1/2 5,1 25/50 225 Lbs/Pol 5ºC A 55ºC
669 29 COM 65 lbs/Pol 3 5,4 25/50 195 Lbs/Pol 5ºC A 55ºC
661 29 COM 65 lbs/Pol 4 6,4 25/50 195 Lbs/Pol 5ºC A 55ºC
662 29 COM 60 lbs/Pol 5 6,4 15/30 180 Lbs/Pol 5ºC A 55ºC
663 29 COM 55 lbs/Pol 6 7,0 15/30 165 Lbs/Pol6 7,0 15/30 165 Lbs/Pol 5ºC A 55ºC

Manufacturer Specifications, consult supplier for additional details.

Technical description

Hoses for use in dredging nozzles and pumps in general. High resistance to pressure and abrasion.
